Idb Anchor Escutcheon Pool Rail Set 4-Inch Anchor For 190-Inch Outer

This convenient kit includes two Stainless Steel 1.90" diameter escutcheons & two 4" bronze 1.90" diameter anchors. With the Stainless Steel escutcheons. your pool rail or ladder will have a finished look. and your anchors will be hidden. Escutcheons are 4" in diameter and 1/2" tall. These Stainless Steel escutcheon fit 1.90" outer diameter tubing pool rails or ladders. The two 4" bronze anchors are needed for the installation of 1.90" outer diameter tubing handrails or ladders. These Bronze anchors are more corrosion-resistant than aluminum and include bonding bolts. Bond anchors are by the code. They are great for residential or commercial use. INSTALLATION INSTRUCTIONS: Retrofitting onto the Existing Deck Core drill a minimum 4 diameter hole for a standard stainless steel or bronze anchor. or a 5 diameter hole for a universal anchor at least 1 2 deeper than the anchor depth. Clean and completely dry the hole with a pipe cleaner and shop vacuum. Ensure that the drain hole at the bottom of the anchor is not plugged in to prevent corrosion. Refer to the Figure shown on the listing page Set the anchor flush with the deck. with the wedge oriented away from the pool. Bond anchor to existing rebar in the deck. Make sure to follow NEC or local building codes. Use either epoxy or compression cement with a minimum of 3.000 PSI. Epoxy or cement is not included. Allow epoxy or cement to cure per the manufacturer’s instructions. Install the ladder or rail into the anchor. New Construction Set anchor flush with the deck. with wedge oriented away from the pool. Refer to the picture on the listing. Bond anchor to rebar in the deck. Make sure to follow NEC or local building codes. Pour concrete with a minimum compression strength of 3.000 PSI. Concrete is not included. Allow cement to cure per manufacturer’s instructions. Install the ladder or rail into the anchor.

• Convenient pool rail or ladder anchor and escutcheon kit: includes 2 bronze anchors and 2 escutcheon plates
• Escutcheon plates hide the anchor and give a finished look to a rail

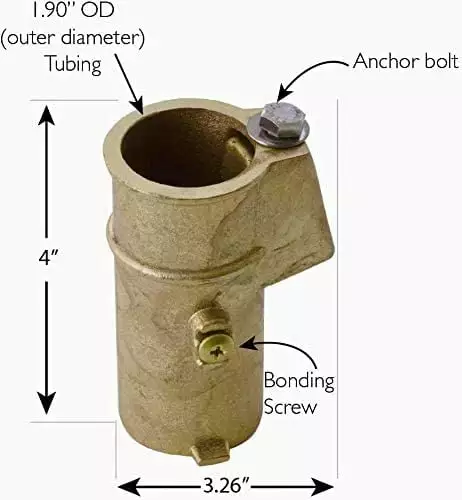

• Bronze anchors are 4 deep. and accommodate 1.90 diameter rails; bonding bolt included

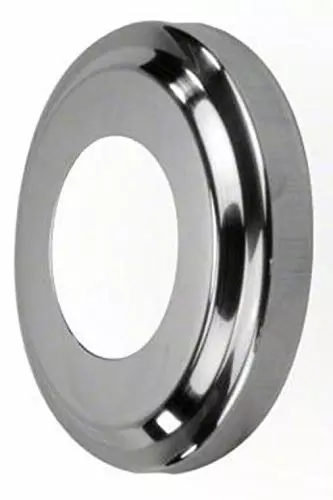

• Escutcheons are 4 wide; 1/2-inch tall and accommodate 1.90 diameter rails
• This Kit is necessary to install a pool rail or ladder on a pool
